Venturi Flow Metering Lambda Square offers two Venturi flow meter models – both in a complete range of sizes:

  • VENTURI MODEL 2300: Unitized Stainless Steel Construction
    • Providing high metering accuracy and low permanent pressure loss.
  • VENTURI MODEL 2350: Fiberglass Ring with Stainless Steel Plate
    • For flow metering with minimal headloss and designed to fit when space is at a premium.

Get a Fast & Friendly Price Quote

Oripac Logo

Support

Engineering, design and application support.

Customization

Fabricated to your requirements.

Experience

Differential flow metering for over 35 years.

Expertise

Thousands of worldwide installations.

Venturi Meter
Advantages:
  • Very Low Permanent Pressure Loss
  • Low Cost 1/3 the Cost of Cast Iron
  • Corrosion Resistant
  • Excellent Flow Measurement
  • Accurate
  • Easy Installation
  • Minimal Maintenance - Set it and forget it!
  • Long Service Life

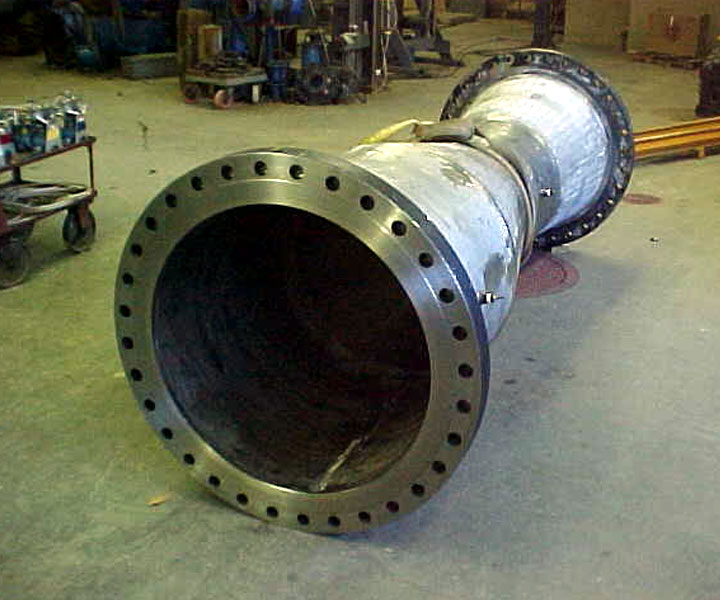

Model 2300 Venturi Flow Meter – When Low Headloss is a Priority!

The Model 2300 offers short laying length, easy installation, high accuracy, and very low permanent pressure loss. It is corrosion-resistant and carries minimal maintenance requirements, making it as economical as it is accurate and consistent. These low maintenance devices provide reliable performance and minimal headloss for a wide range of municipal and industrial applications.

Made of dimensionally stable fiberglass-reinforced vinyl ester epoxy ensures accurate flow measurement and long life.
Highly corrosion resistant, self-scouring, and accommodates a wide range of line fluids, line pressures and temperature conditions up to 350°F.

The carbon steel holding flange is coated with vinyl ester epoxy and has 316 stainless steel pressure connections. The Model 2300 comes ready to install with neoprene flange gaskets to fit pipes from 3/4" to 120". It can be supplied with bronze, stainless steel, or other metal throat materials.

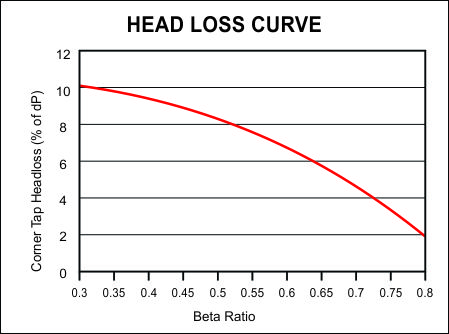

Venturi Head Loss

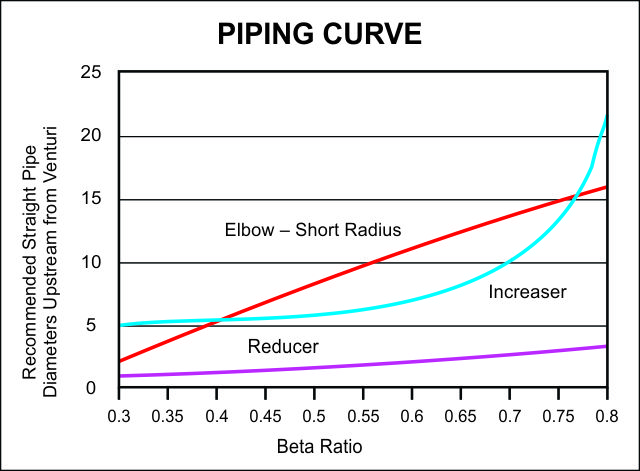

Venturi Piping Curve

Custom Fit

A wide range of standard and custom sizes for your application!

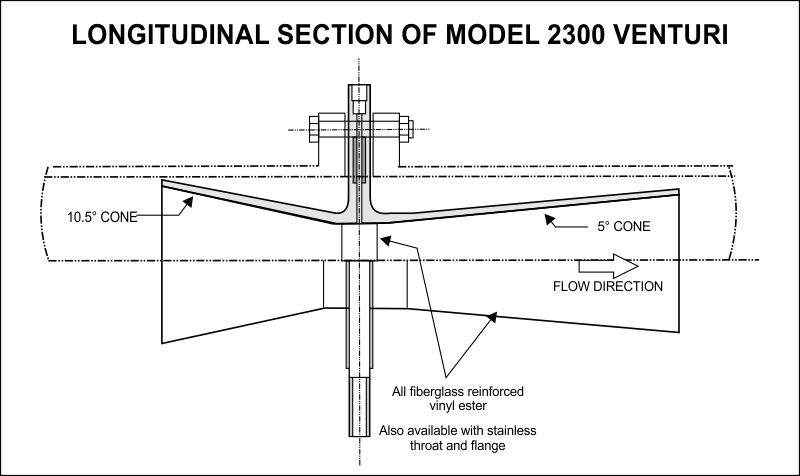

Venturi Tube Drawing
Venturi Meter
Advantages:
  • Short Laying Length
  • Low Permanent Pressure Loss
  • Low Cost – 1/3 the Cost of Cast Iron
  • Corrosion Resistant
  • Easy Installation Between ANSI Flanges
  • Minimal Maintenance – Install it and forget it
  • Consistent Accuracy
  • Long Service Life!

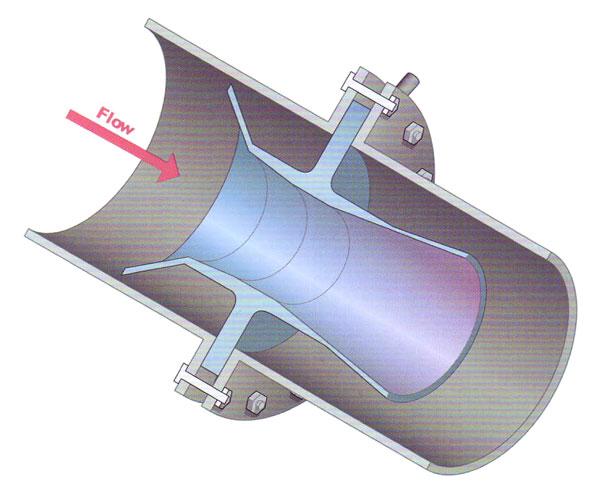

Model 2350 Venturi Flow Meter – For Tight Space Requirements!

The very short-laying length Model 2350 provides high accuracy and low permanent pressure loss while minimizing space requirements. The flow conditioning within the inlet section allows for closer coupling with upstream pipe fittings.
These easy to install, low maintenance devices provide reliable performance and minimal headloss for a wide range of municipal and industrial applications.

Made of dimensionally stable fiberglass-reinforced vinyl ester epoxy ensures accurate flow measurement and long life.
Highly corrosion resistant, self-scouring, and accommodates a wide range of line fluids, line pressures and temperature conditions up to 350°F.

The carbon steel holding flange is coated with vinyl ester epoxy and has 316 stainless steel pressure connections. The Model 2350 comes ready to install with neoprene flange gaskets to fit pipes from 3/4" to 120". It can be supplied with bronze, stainless steel, or other metal throat materials.

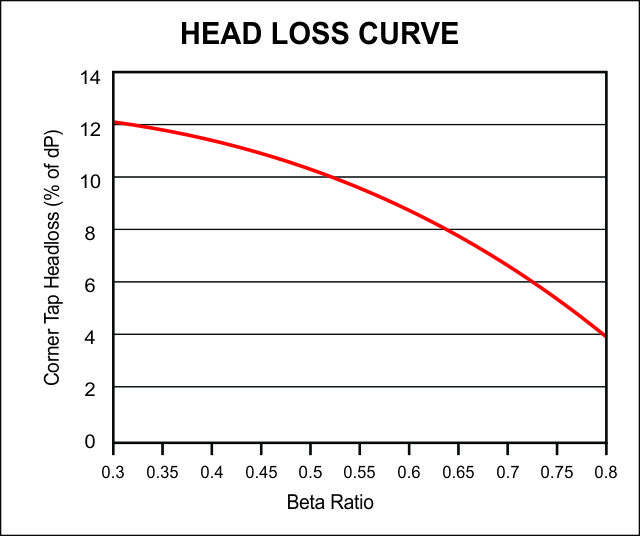

Venturi Head Loss

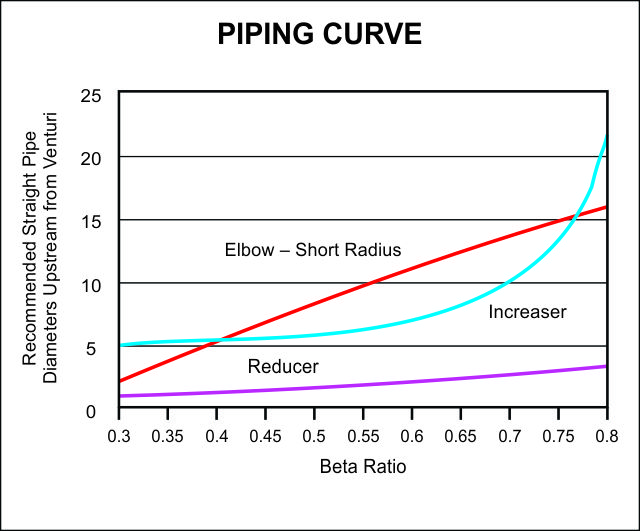

Venturi Piping Curve

Custom Fit

A wide range of standard and custom sizes for your application!
Venturi Tube Drawing
