Straightening Vanes

Straightening Vanes

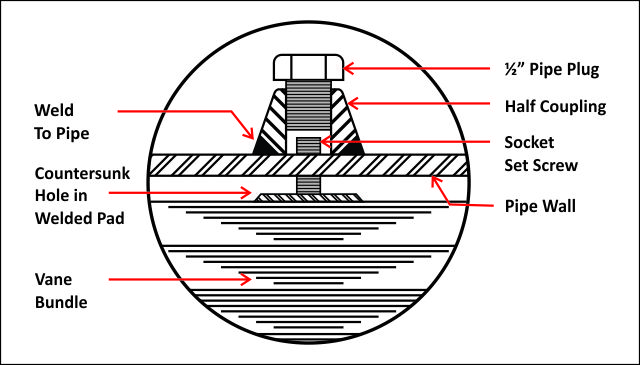

Installed upstream of flow meter when adequate upstream pipe run section can not be met. Proper installation will straighten out flow profile to increase metering accuracy. Available in carbon steel, stainless steel and other alloys. Perforated plate and vane type flow straighteners also available.

Get a Fast & Friendly Price Quote

Oripac Logo


Engineering, design and application support.


Fabricated to your requirements.


Differential flow metering for over 35 years.


Thousands of worldwide installations.

Concentric Orifice Plate

Type I Concentric

Concentric Orifice Plate

Type II Concentric

Concentric Orifice Plate

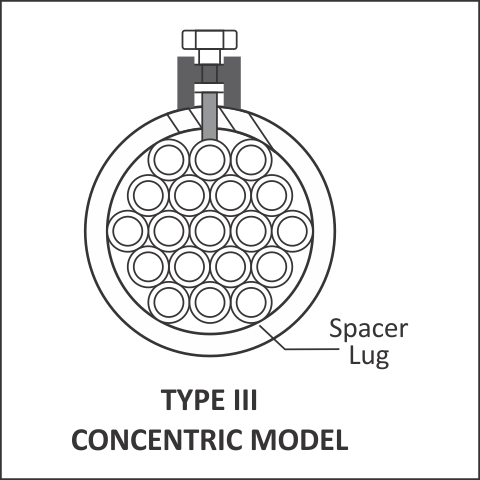

Type III Concentric
