Standard Sizes: 1/8" - 60", All Flange Ratings. Available in stainless steel, carbon steel, brass, fiberglass, spun aluminum, PVC, Hastalloy, Monel and other materials. Available in all line sizes and throats. Sized for standard, critical or sonic flow conditions. Also can be provided as part of an ASME nozzle meter run with piping, flanges, calibration, etc.

Get a Fast & Friendly Price Quote

Oripac Logo


Engineering, design and application support.


Fabricated to your requirements.


Differential flow metering for over 35 years.


Thousands of worldwide installations.

ASME Flow Nozzle

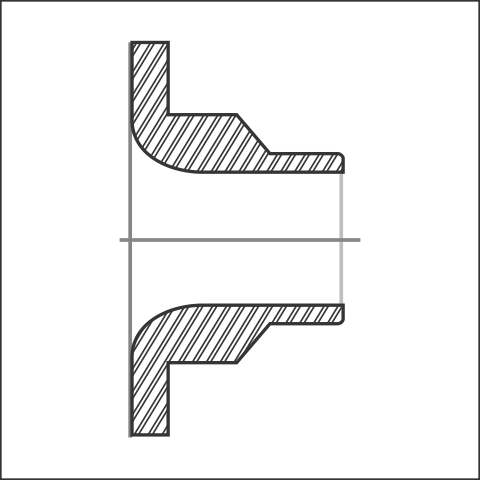

Standard Flow Nozzle

The "STANDARD" FLANGE FLOW NOZZLE style is the most commonly used Flow Nozzle. It is designed to be inserted between pipe flanges. A special machined shoulder on the back side of the flange assures the proper alignment of the nozzle with the pipe I.D. This style Flow Nozzle utilizes pipe wall taps whose location is determined by the Beta Ratio.

ASME Flow Nozzle

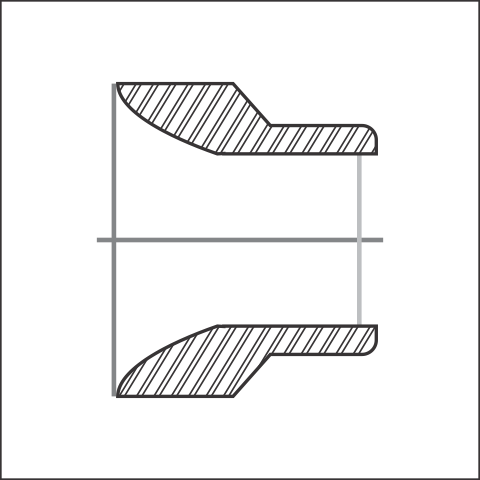

Weld-In Flow Nozzle

The "WELD-IN" FLOW NOZZLE style is designed to be installed permanently in a pipe section. This nozzle has a specially machined step on its outside diameter that is used to align a beveled inlet and outlet bored pipe section. This type nozzle is widely used where high temperature and pressure applications prohibit the use of pipe flanges such as in power plant and feed water installations. Pipe wall taps are utilized with this style.

ASME Flow Nozzle

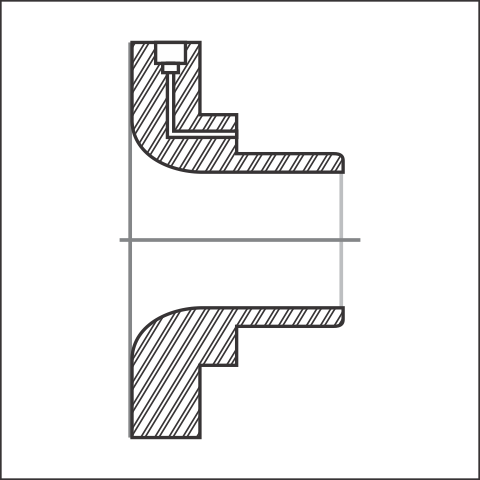

Flanged Flow Nozzle

The "TAPPED" TYPE FLANGED FLOW NOZZLE is similar to the "FLANGE" style, but includes a downstream tap (usually a 1/2" connection) provided in the flange of the nozzle. This style nozzle is recommended in smaller line sizes where the downstream tap may interfere with the pipe weld or downstream mounting flange.

ASME Flow Nozzle

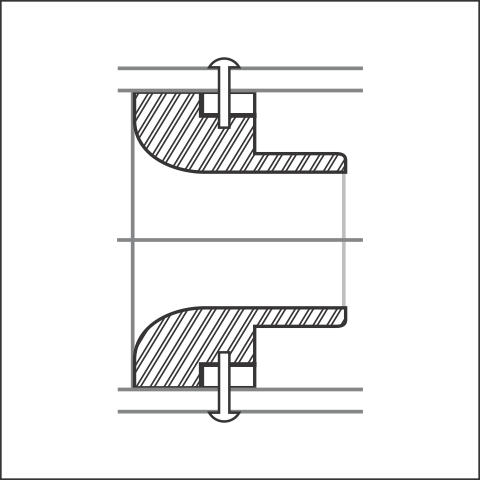

Holding Ring Flow Nozzle

The "HOLDING RING" FLOW NOZZLE style is designed so that the welding of dissimilar materials is eliminated, A special holding ring and locating pins are made of the same material as the pipe that the nozzle Is to be installed in. This allows for the nozzle to be offered in a wide range of materials. This style is not recommended for line sizes below 4 Inches.
